NextSeq 550Dx Instrument

The next level in diagnostic power

Benchtop IVD sequencing to enable labs to run diagnostic assays and develop a range of applications from targeted panels to WGS

NextSeq 550Dx Instrument
Scientist starting sequencing run on NextSeq 550Dx Instrument
Run IVD assays and LDT on one instrument

Work within a regulated sequencing workflow to conduct diagnostic tests while retaining the flexibility to develop your own laboratory developed test (LDT). With two operating modes, the NextSeq 550Dx Instrument enables labs to harness Illumina sequencing and array scanning methods to support a wide range of applications.

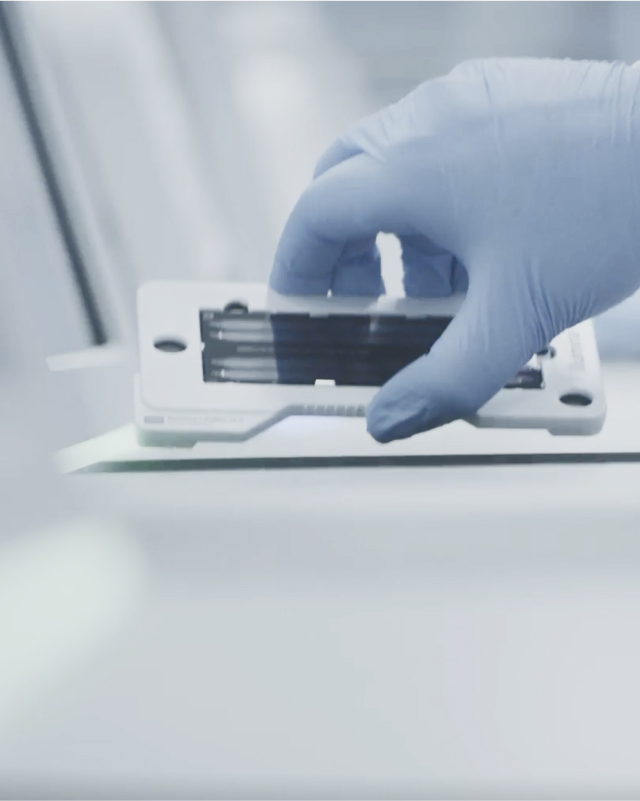

NexSeq 550Dx microarray
Improve patient treatment with reliable data and quick TAT

A simple three-step workflow, fast turnaround times (TAT), and integrated analysis software deliver accurate results for time-sensitive clinical IVD testing.

Scientist holding NextSeq 550Dx sequencing reagent
Ensure the highest standards in clinical diagnostics

The NextSeq 550Dx Instrument and sequencing reagents are:

  • In compliance with global regulatory standards including FDA and IVDR regulations
  • Developed under design control principles
  • Manufactured under Current Good Manufacturing Practices (cGMPs)
  • 21 CFR part 11 compliant software
  • Verified for consistent assay performance
Illumina DNA Prep Enrichment Dx library preparation kit
Design custom NGS IVD assays

The NextSeq 550Dx Instrument is part of a robust IVD development toolkit when paired with the Illumina DNA Prep Enrichment Dx library preparation kit and the NextSeq 550Dx Reagent Kit. Develop your own assays with regulated components or benefit from a growing set of Illumina clinical assays.

Contact an Illumina representative for more information about IVD development partnerships.

Learn more about NGS for IVD assay development



The reliability and quality of a clinical instrument

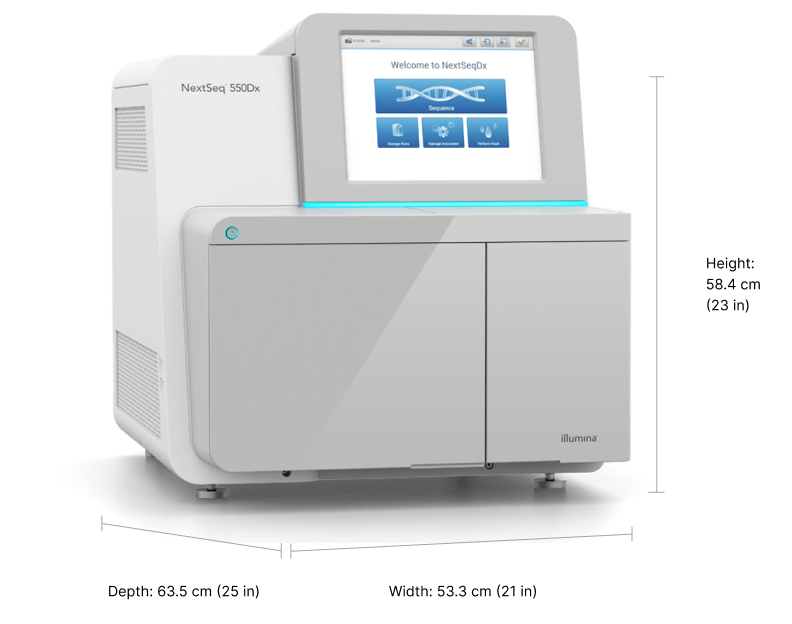

NextSeq 550Dx instrument specifications

Instrument specifications

  • Output
    120 Gb
  • Paired-end reads per run
    ≥ 300M
  • Max read length
    2 × 150 bp
  • Run time
    < 35 hr

Simplified three-step workflow

The NextSeq 550Dx Instrument is easily configured, scalable, and user-friendly.

1
Prepare libraries

Benefit from a pipeline of IVD tests in development or design your own. Generate indexed libraries and create runs in Local Run Manager.

2
Sequence

Add library to the ready-to-use NextSeq 550Dx reagent cartridge, load, and start run. Generate data < 35 hours.

3
Analyze data

Automatically launch data analysis with Local Run Manager and get results in a few hours. Leverage BaseSpace apps for additional analysis options.

Diagnostic and clinical research applications

Run IVD assays using targeted panels and a wide range of clinical research applications, including exome sequencing, targeted gene sequencing, whole-transcriptome sequencing, and cytogenomic arrays.

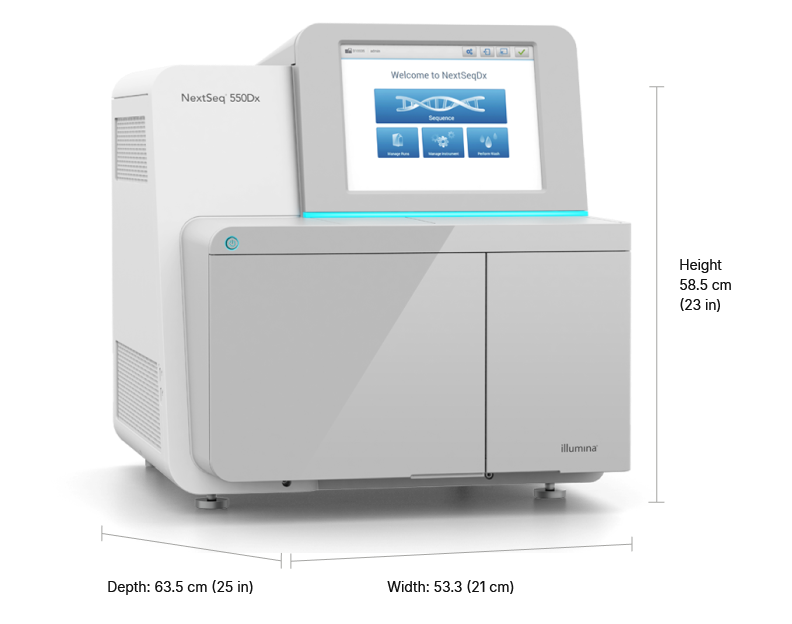

NextSeq 550Dx instrument specifications

Featured applications

Molecular diagnostics

Apply advances in genetic analysis to fill crucial needs in disease detection, prenatal and reproductive care, and precision medicine.

IVD assay development

Gain access to a robust IVD pipeline in partnership with Illumina and design custom NGS assays for your clinical lab.

Compare with MiSeqDx and NovaSeq 6000Dx Instruments (in Diagnostic Mode)



NextSeq 550Dx Instrumenta

MiSeqDx Instrumenta

NovaSeq 6000Dx Instrumentb,c

Run time < 35 hr 24 hr ≤ 45 hr
Maximum output per run 120 Gb ≥ 5 Gb ≥ 3 Tb
Maximum paired-end reads per run > 300M ≥ 15M ≥ 20B
Read length 2 × 150 bp 2 × 150 bpd 2 × 150 bp
Data quality > 75% of bases higher than Q30 ≥ 80% of bases higher than Q30 ≥ 85% of bases higher than Q30
Data analysis offeringse

Dx Mode: Local Run Manager, dedicated DRAGEN server

RUO Mode: Local Run Manager, Illumina Connected Analytics, on-premises DRAGEN server

Dx Mode: Local Run Manager

RUO Mode: Local Run Manager, Illumina Connected Analytics, on-premises DRAGEN server

Dx Mode: Dedicated DRAGEN server

RUO Mode: Dedicated DRAGEN server, BaseSpace Sequence Hub, Illumina Connected Analytics

a. Libraries generated with TruSeq Custom Amplicon Kit Dx.

b. Libraries generated with Illumina DNA Prep with Enrichment Dx.

c. Based on a single S4 flow cell.

d. Maximum read length for the MiSeqDx Instrument is 2 x 300 bp, depending on the assay used.

e. A dedicated DRAGEN server is paired with an Illumina sequencing system and can be used to plan secondary analysis as part of sequencing run using the Illumina Run Manager. An on-premises DRAGEN server does not communicate directly with the sequencing system but can ingest and process data from any Illumina sequencing system via a command-line.

Popular products

NextSeq 550Dx Reagents

These sequencing reagent kits offer a simplified workflow and high data quality for in vitro diagnostic testing on the NextSeq550 Dx Instrument.

VeriSeq NIPT Solution v2

Comprehensive in-lab NIPT IVD solution including reagents, instruments, and software for accurate aneuploidy screening results in 26 hours.

TruSight Oncology Comprehensive (EU)

The first CE-marked IVD kitted solution for comprehensive genomic profiling (CGP) of DNA and RNA variants, plus MSI and TMB, for multiple solid tumor types.

Intended Use for the NextSeq 550Dx Instrument

United States:

The NextSeq 550Dx Instrument is intended for targeted sequencing of DNA libraries from human genomic DNA extracted from peripheral whole blood or formalin-fixed, paraffin-embedded (FFPE) tissue when used with in vitro (IVD) diagnostic assays. The NextSeq 550Dx Instrument is not intended for whole genome or de novo sequencing. The NextSeq 550Dx Instrument is to be used with specific registered, certified, or approved in vitro diagnostic reagents and analytical software.

European Union:

The NextSeq 550Dx instrument is intended for sequencing of DNA libraries when used with in vitro diagnostic assays. The NextSeq 550Dx instrument is to be used with specific registered, certified, or approved in vitro diagnostic reagents and analytical software.

Speak with a specialist

Contact us to learn more and ask questions to determine if the NextSeq 550Dx Instrument is right for your lab.
