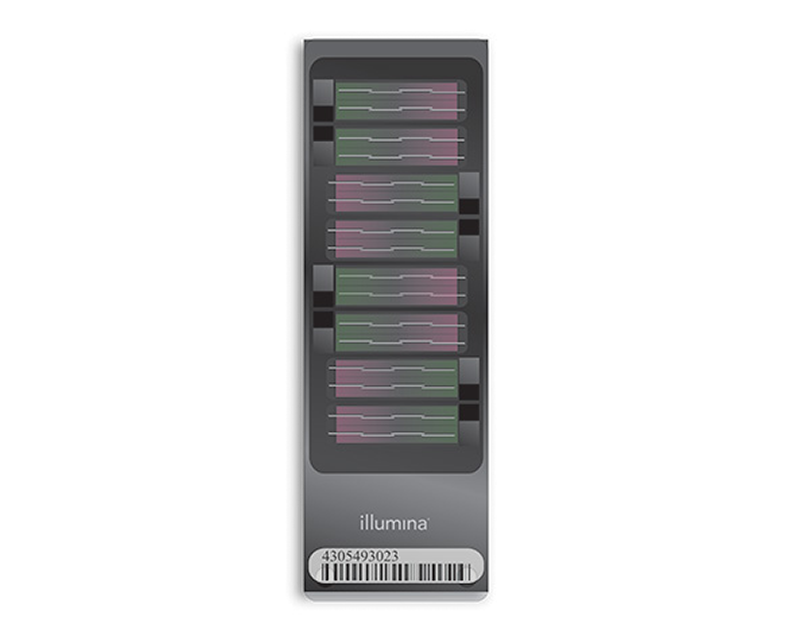

Infinium CytoSNP-850K v1.1 BeadChip

This consortium-built array provides comprehensive coverage of cytogenetically relevant genes for congenital disorders and cancer research. Read More...
Select Product(s)

Infinium CytoSNP-850K v1.1 BeadChip Kit (8 samples)

WG-322-1101

Price



Infinium CytoSNP-850K v1.1 BeadChip Kit (16 samples)

WG-322-1102

Price



Infinium CytoSNP-850K v1.1 BeadChip Kit (48 samples)

WG-322-1103

Price



Infinium CytoSNP-850K v1.1 BeadChip Kit (96 samples)

WG-322-1104

Price



Product Highlights

The Infinium CytoSNP-850K v1.1 BeadChip is the first SNP-based human microarray to leverage the latest input from the international community for cytogenomics studies. The gene list was defined based on content from the International Collaboration for Clinical Genomics (ICCG)1 and the Cancer Genomics Consortium (CGC)2, providing a comprehensive view of cytogenomic activity.* This enhanced SNP coverage enables copy number calls as small as 10 kb in regions associated with genetic disease.

Thorough Coverage for Constitutional and Cancer Applications

The Infinium CytoSNP-850K v1.1 BeadChip provides comprehensive coverage of cytogenetically relevant genes on a proven platform, helping researchers find valuable information that may be missed by other technologies. It contains approximately 850,000 empirically selected single nucleotide polymorphisms (SNPs) spanning the entire genome with enriched coverage for 3,262 genes of known cytogenetics relevance in both constitutional and cancer applications.

High Detection Sensitivity for Low-level Mosaics

A unique attribute of the Infinium array technology is the use of long 50-mer probes that have high specificity to the SNP target. This increases sensitivity for low-level mosaics3 and offers high resolution for copy-neutral loss of heterozygosity (LOH). In addition, each SNP is represented in at least 15x redundancy to increase the signal-to-noise ratio for making accurate copy number variation (CNV) and absence of heterozygosity (AOH) calls across the genome. As few as 10 consecutive probes are necessary to make accurate CNV calls, demonstrating the high performance level of the Infinium assay.

Specifications

Method-Specific Workflow Example



Customer Stories

From Arrays to NGS: How Chromosomal Genetics Evolved From Structure to Disease

Researchers from the MGZ Medical Genetic Center are using the Infinium CytoSNP-850K BeadChip and the TruSight Cancer Panel to analyze chromosomal abnormalities.

Read More
Microarray-Based Cytogenetic Testing Illuminates Congenital Abnormalities and Cancer

The Infinium CytoSNP-850K BeadChip enables cytogenetics researchers to scan the entire genome for common and rare genomic alterations.

Read More

Related Products

Image Source
TruSight One Sequencing Panels

Comprehensive panels targeting disease-associated regions of the exome with high analytical sensitivity and specificity.


Image Source
Infinium FFPE QC and DNA Restoration Kits

Evaluate sample quality and repair degraded FFPE DNA samples for use in Infinium array-based assays.


References
  1. International Collaboration for Clinical Genomics
  2. Cancer Genomics Consortium
  3. Conlin LK, Thiel BD, Bonnemann CG, et al. Mechanisms of mosaicism, chimerism and uniparental disomy identified by single nucleotide polymorphism array analysis. Hum Mol Genet. 2010;19(7):1263-75. doi: 10.1093/hmg/ddq003.

*ICCG and CGC were previously the International Standard of Cytogenomics Array (ISCA) and the Cancer Cytogenetics Microarray Consortium (CCMC), respectively.
