Sequencing Coverage

What is Coverage in NGS?

Next-generation sequencing (NGS) coverage describes the average number of reads that align to, or "cover," known reference bases. The sequencing coverage level often determines whether variant discovery can be made with a certain degree of confidence at particular base positions.

Sequencing coverage requirements vary by application, as noted below. At higher levels of coverage, each base is covered by a greater number of aligned sequence reads, so base calls can be made with a higher degree of confidence.

Sequencing Coverage Requirements

Researchers typically determine the necessary NGS coverage level based on the method they're using, as well as other factors such as the reference genome size, gene expression levels, specific application of interest, published literature, and best practices from the scientific community. Examples of sequencing coverage recommendations for some common methods are listed here.

Sequencing Method Recommended Coverage
Whole genome sequencing (WGS) 30× to 50× for human WGS (depending on application and statistical model)
Whole-exome sequencing 100×
RNA sequencing Usually calculated in terms of numbers of millions of reads to be sampled. Detecting rarely expressed genes often requires an increase in the depth of coverage.
ChIP-Seq 100×
How to Estimate and Achieve Your Desired NGS Coverage Level

How to Estimate and Achieve Your Desired NGS Coverage Level

  • Estimating Sequencing Coverage (PDF): Learn how to estimate the depth of coverage needed for your experiment, and read more detailed background information about sequencing coverage.
  • Sequencing Coverage Calculator: Find out how to calculate the reagents and sequencing runs needed to achieve the desired sequencing coverage for your experiment.
Sequencing Coverage and Read Length

Choosing the right sequencing read length depends on your sample type, application, and coverage requirements. Learn how to calculate the right read length for your sequencing run and understand how sequencing coverage is related to read length.

Learn More
Sequencing Coverage and Read Length

Histograms to Depict NGS Coverage Range and Uniformity

Coverage histograms are commonly used to depict the range and uniformity of sequencing coverage for an entire data set. They illustrate the overall coverage distribution by displaying the number of reference bases that are covered by mapped sequencing reads at various depths. Mapped read depth refers to the total number of bases sequenced and aligned at a given reference base position (note that "mapped" and "aligned" are used interchangeably in the sequencing community).

In a sequencing coverage histogram, the read depths are binned and displayed on the x-axis, while the total numbers of reference bases that occupy each read depth bin are displayed on the y-axis. These can also be written as percentages of reference bases.

Examples of Coverage Histograms

Ideally, the plot will take the form of a Poisson-like distribution with a small standard deviation, as seen in the left-hand histogram image. This distribution is valid under the assumption that reads are randomly distributed across the genome and that the ability to detect true overlaps between reads is constant within a sequencing run.

However, for a variety of reasons, actual coverage histograms may have a large spread (i.e., broad range of read depths), or have a non-Poisson distribution, as seen in the right-hand example of a poor sequencing coverage histogram.

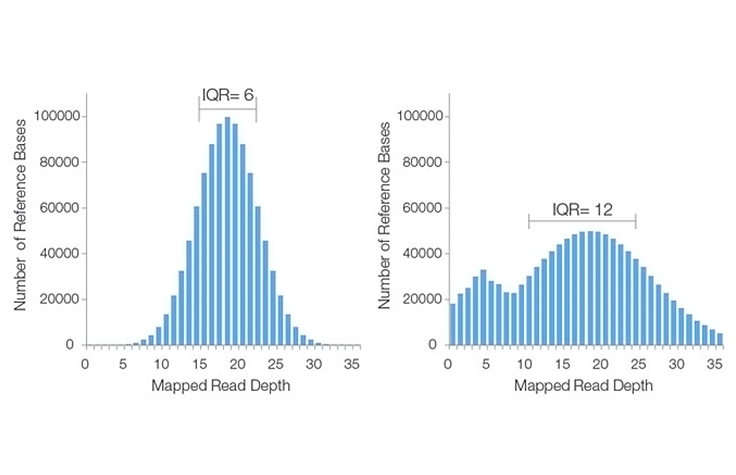

Examples of good (left) and poor (right) sequencing coverage histograms

Evaluating Next-Generation Sequencing Coverage

The following metrics are commonly used to evaluate NGS coverage:

Inter-Quartile Range (IQR)

The IQR is the difference in sequencing coverage between the 75th and 25th percentiles of the histogram. This value is a measure of statistical variability, reflecting the non-uniformity of coverage across the entire data set.

A high IQR indicates high variation in coverage across the genome, while a low IQR reflects more uniform sequence coverage. In the example histograms above, the lower IQR indicates that the histogram on the left has better sequencing coverage uniformity than that on the right.

Mean (Mapped) Read Depth

The mean mapped read depth (or mean read depth) is the sum of the mapped read depths at each reference base position, divided by the number of known bases in the reference.

The mean read depth metric indicates how many reads, on average, are likely to be aligned at a given reference base position.

Raw Read Depth

This is the total amount of sequence data produced by the instrument (pre-alignment), divided by the reference genome size. Although raw read depth is often provided by sequencing instrument vendors as a specification, it does not take into account the efficiency of the alignment process.

If a large fraction of the raw sequencing reads are discarded during the alignment process, the post-alignment mapped read depth can be significantly smaller than the raw read depth.
