What are mapped reads?

Illumina sequencing-by-synthesis (SBS) has significantly advanced genome mapping methods over the past 20 years, helping researchers achieve highly accurate coverage over the vast majority of the human genome.1 However, for a small percentage of the genome, mapping short reads to a reference genome remains challenging. These challenges primarily occur in repetitive or low-complexity regions, regions that have high homology with other parts of the genome, or large structural variations.

Mapped read technology leverages on-flow cell library preparation and novel informatics that incorporate proximity information from clusters in neighboring nanowells to generate long-range genomic insights. The unique workflow maintains the link between the original long DNA template and the resulting short sequencing reads, enabling improved mapping in low-complexity regions, ultra-long phasing of genetic variants, and enhanced detection of structural variants.

Thumbnail

Advantages of mapped read technology

Mapped read technology uses a unique workflow that provides comprehensive genome analysis.

On-flow cell library prep creates a highly streamlined workflow for genome sequencing

SBS chemistry provides proven accuracy and scalability

Cluster proximity analysis unlocks exceptional long-distance information

Enhanced mapping resolves challenging variants and genomic regions

Novel method improves detection of large structural rearrangements

How does Illumina mapped read technology work?

In mapped read technology, DNA templates are extracted from samples using standard or high molecular weight methods and introduced directly to the flow cell surface, where they are captured, transformed into clusters through a process called tagmentation and sequenced. By introducing long DNA templates directly to the flow cell, proximal nanowells produce a constellation-like pattern that allows clusters to be mapped back to the original template using novel algorithms in DRAGEN secondary analysis. This significantly improves mapping reads to a reference genome and allows researchers to unlock long-range genomic insights with the accuracy and scalability of short-read SBS sequencing.

Figure 1a: Aerial view of constellation pattern

Figure 1b: Side view of constellation pattern

Figure 1b: Side view of constellation pattern

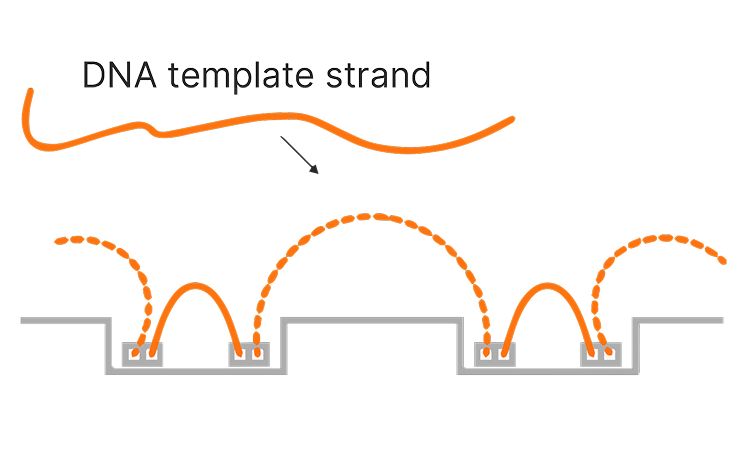

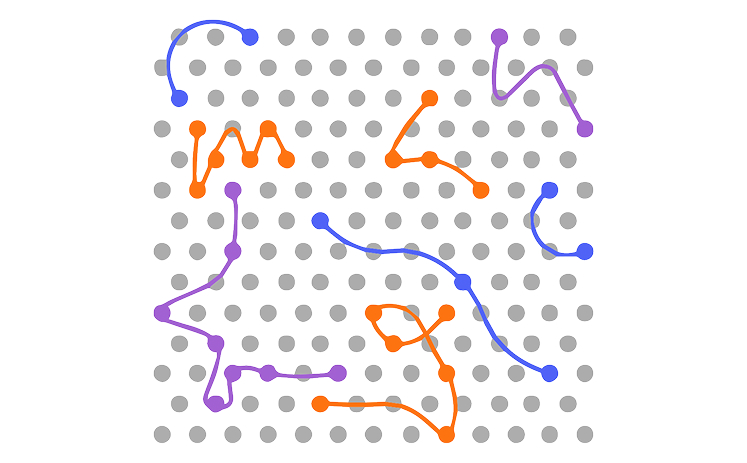

Figure 1: DNA attaches to the flow cell in a constellation pattern. The top view illustrates a small percentage of the tile showing DNA strands across the flow cell. The side view illustrates the template DNA undergoing tagmentation on the flow cell.

Perspectives on mapped read technology

Dr Stephen F. Kingsmore, President and Chief Executive Officer of Rady Children's Institute for Genomic Medicine, shares his perspective on mapped read technology and its potential impact on rapid whole-genome sequencing for rare genetic disease.

Thumbnail

FAQ

Illumina mapped read technology is currently being developed for the NovaSeq X Series and compatibility has been demonstrated with benchtop sequencing systems. Analysis will use a novel DRAGEN secondary analysis pipeline and be compatible with the Illumina whole-genome tertiary analysis solution.

No, the experimental workflow does not require modifications to the sequencing system. The method only requires a novel sequencing recipe, making it readily accessible to researchers.

Long-read sequencing enables sequencing of intact long DNA molecules. The mapped read technology workflow introduces long template DNA directly to a patterned flow cell; proximal nanowells have a high probability of containing DNA from the same template. Reads can be informatically mapped with high confidence for applications that include detection of large structural variations, mapping low-complexity regions, and ultra-long phasing of variants.

Read mapping describes the process of determining the genomic location from which a sequence read originates. Alignment involves identifying similarities between two or more sequences. For example, a single read can align to more than one place in the genome but will only accurately map to one. Mapped read technology supports both mapping reads to a reference genome and alignment analysis.

The 5-base bioinformatics solution does not require advanced expertise. It offers highly accurate variant and methylation detection. This is a simple, powerful, and easy-to-use multiomic analysis solution. Insights from Illumina Connected Multiomics are powered by DRAGEN analysis.
