Ultrahigh-throughput genotyping from 100 to 100,000 bead types for single or multispecies, human and nonhuman initiatives.
Sample throughput
Number of samples
Number of markers
We are pleased to announce that the Infinium EXT iSelect-192 Kit will be available for order starting mid-2026. For inquiries, reach out to your sales representative.
The Infinium EXT iSelect-192 Kit offers a 2–3 day workflow that supports up to 1.4M samples per year per iScan System.
Automation for scale
Optional liquid-handling robots greatly enhance throughput using 384-well plates
Integrated control and analysis software
Intuitive control software, combined with powerful DRAGEN Array secondary analysis with GenomeStudio software, reduces time to insights
Optimized reagents
Environmentally friendly reagents comply with regulatory requirements and minimize footprint
| Assay type | Infinium EXT |
|---|---|
| Automation capability | Automated array loader, Liquid handling robot(s) |
| Automation details | IAPS with ILASS |

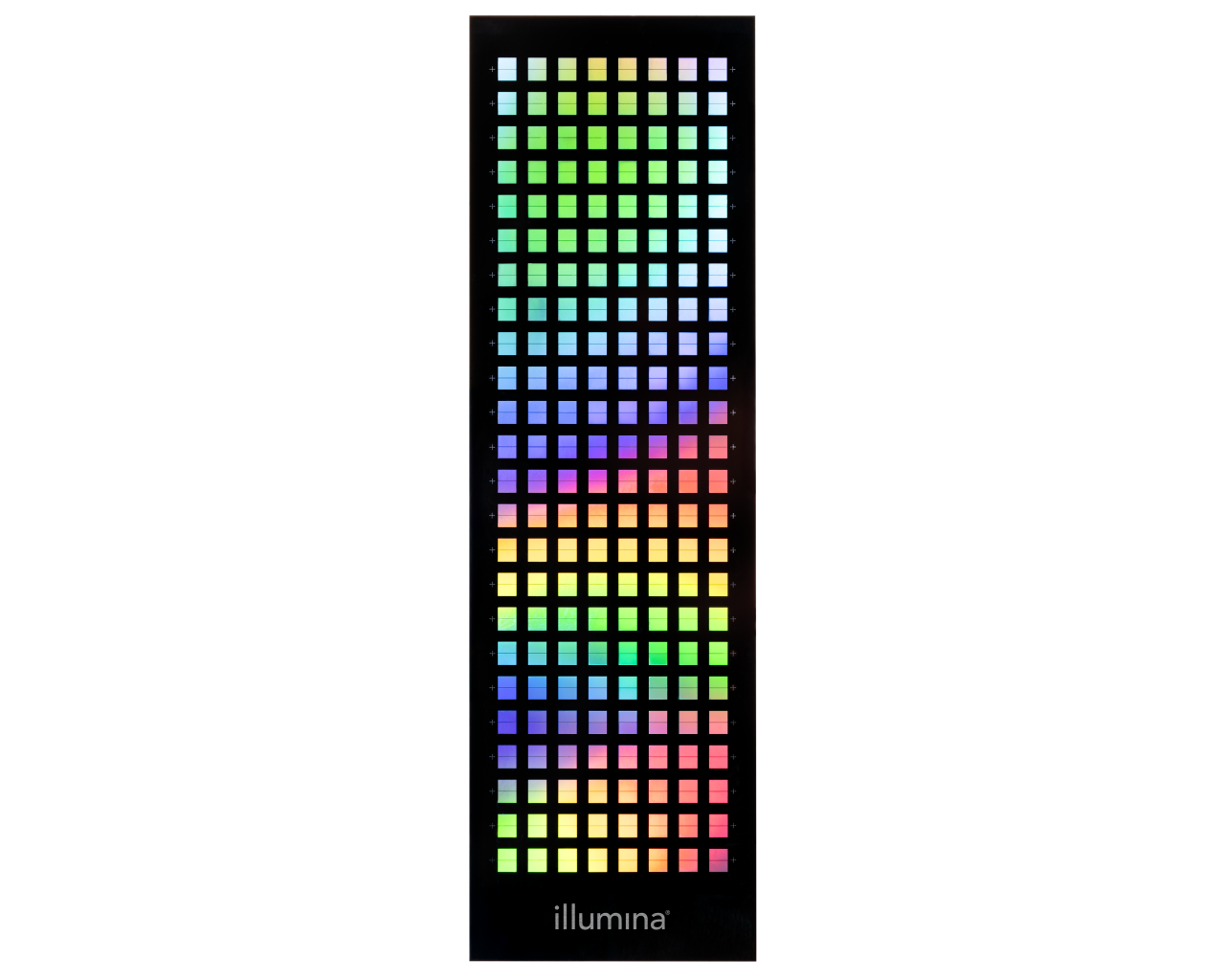

| Description | Infinium EXT iSelect-192 Kit allows researchers to include up to five species in a custom, high-throughput genotyping assay for maximum flexibility. Each BeadChip accommodates 192 samples and up to 100,000 bead types. |
| Input quantity | 100 ng minimum (200 ng recommended) |
| Method | High-throughput genotyping array, Targeted genotyping array, Custom array, Genome-wide genotyping array |
| Nucleic acid type | DNA |
| Number of markers | Up to 100,000 custom markers |
| Number of samples | 192 samples per array |
| Sample throughput | 1.4M samples per year (per 1 Automated Pipetting System, 1 autoloader, 1 iScan System, and 3 full deck runs weekly) |
| Species category | Any species, Mammalian, Bovine, Human |
| Technology | Microarray |
| Variant class | Single nucleotide polymorphisms (SNPs), Germline variants, Insertions-deletions (indels) |
iScan System, Infinium Automated Pipetting System with ILASS
The Infinium EXT iSelect-192 BeadChip offers researchers the ability to process millions of samples annually to support applications like genomic selection for diploid and polyploid organisms, biobanking, and population screening studies.
DesignStudio Custom Assay Designer
DesignStudio is a web-based assay design tool to help researchers design and order custom genotyping microarray probes or custom sequencing assays.
These kits include the hardware and accessories needed to process multiple BeadChip array samples in parallel.
The iScan microarray scanner supports high-throughput BeadChip processing, scanning hundreds to thousands of samples quickly and accurately.
Infinium Automation Option Packages
Automation options with robot control software for Infinium assays streamline sample preparation workflows and reduce errors.
A highly customizable laboratory information management system that allows genomics labs to track samples and manage workflows efficiently and securely.
GenomeStudio software provides an integrated platform for data analysis of microarray-based genotyping assays, with a user-friendly graphical interface.
Beeline Software offers flexible filtering capabilities to reduce microarray data size and facilitate analysis for large array experiments.
Large-scale genotyping with microarrays can identify variants associated with disease risk in large cohorts or populations.
Genome-wide methylation profiling studies with microarray and NGS technologies can provide novel insights into the functional impact of methylation.
Infinium Methyl EX iSelect Custom BeadChips
Custom, high-throughput methylation array BeadChips for epigenetic research
Literature is not currently available for this product.
A dedicated support section is not currently available for this product
| Infinium EXT iSelect-192 Kit | Infinium XT iSelect-96 Kit | Infinium HTS iSelect Custom Beadchips | Infinium HTS iSelect Methyl Custom BeadChip | |
|---|---|---|---|---|
| Assay type | Infinium EXT | Infinium XT | Infinium HTS | Infinium HTS |
| Automation capability | Automated array loader, Liquid handling robot(s) | Automated array loader, Liquid handling robot(s) | Automated array loader, Liquid handling robot(s) | Automated array loader |
| Description | Infinium EXT iSelect-192 Kit allows researchers to include up to five species in a custom, high-throughput genotyping assay for maximum flexibility. Each BeadChip accommodates 192 samples and up to 100,000 bead types. | The Infinium XT iSelect-96 Kit enables cost-effective genotyping for large-scale studies on virtually any species with a throughput range of 50K to > 1M samples/year. The BeadChip supports up to 100K nonhuman and 50K human markers with prevalidated or novel custom content. | The Infinium HTS iSelect Custom BeadChip enables researchers to design a fully customized high-throughput screening panel to interrogate virtually any marker in the genome for virtually any species to fit their research needs. | Using the DesignStudio Assay Design Tool, this product allows labs to create high-throughput, custom, 24- or 48-sample BeadChips to efficiently and accurately assess methylation for up to 100,000 CpG sites in human and select nonhuman samples. |
| Input quantity | 100 ng minimum (200 ng recommended) | 200 ng | 200 ng | 250 ng DNA |
| Method | High-throughput genotyping array, Targeted genotyping array, Custom array, Genome-wide genotyping array | High-throughput genotyping array, Custom array | Custom array | Methylation array |
| Nucleic acid type | DNA | DNA | DNA | DNA |
| Number of markers | Up to 100,000 custom markers | 50K custom markers | 700K custom markers max | 500-100,000 user defined CpGs add-on capacity |
| Number of samples | 192 samples per array | 96 samples per array | 24 samples per array | 24 samples per array |
| Sample throughput | 1.4M samples per year (per 1 Automated Pipetting System, 1 autoloader, 1 iScan System, and 3 full deck runs weekly) | > 1M samples/year max. Range: 100K to > 1M samples/year. | 5760 samples per week max (with 2 iScan systems, 1 AutoLoader 2x, and 2 Tecan robots over an 8-hour day) | 5760 samples per week max (with 2 iScan systems, 1 AutoLoader 2x, and 2 Tecan robots over an 8-hour day) |
| Species category | Any species, Mammalian, Bovine, Human | Drosophila, Any species, Shrimp, Mammalian, Tomato, Bovine, Mouse, Canine, Yeast, Rice, Zebrafish, Ovine, Hamster, Chicken, Porcine, Human, Rat, Equine, Plant, Virus, Maize, Nematode, Bacteria, Soybean | Drosophila, Any species, Shrimp, Mammalian, Tomato, Bovine, Mouse, Canine, Yeast, Rice, Zebrafish, Ovine, Hamster, Chicken, Porcine, Human, Rat, Equine, Plant, Virus, Maize, Nematode, Bacteria, Soybean | Mouse, Human |
| Technology | Microarray | Microarray | Microarray | Microarray |
| Variant class | Single nucleotide polymorphisms (SNPs), Germline variants, Insertions-deletions (indels) | Single nucleotide polymorphisms (SNPs), Germline variants, Insertions-deletions (indels) | Single nucleotide polymorphisms (SNPs), Germline variants, Structural variants, Insertions-deletions (indels), Copy number variants (CNVs) | Differentially methylated cytosines |
Library Prep and Array Kit Selector
Find the right sequencing library preparation kit or microarray for your needs. Filter by method, species, and more. Compare, share, and order kits.
DesignStudio Custom Assay Design Tool
DesignStudio is a web-based assay design tool to help researchers design and order custom genotyping microarray probes or custom sequencing assays.
Advances in Animal Epigenetics: Driving Research and Breeding Forward–EAAP Annual Meetings
Webinar series in collaboration with the European Federation of Animal Science
Key features of the Infinium EXT workflow include:
Support for 100–100K ABTs (attempted bead types) and up to 1.4M samples/year
Fast two- to three-day workflow
Environmentally friendly reagents
DesignStudio Software includes a custom genotyping microarray probe designer where custom content can be developed and ordered using a guided, intuitive interface that generates a custom content conversion rate that is guaranteed to be 95% or higher.
Infinium EXT iSelect-192 Kit samples are processed with the Infinium Automated Pipetting System with ILASS.
An innovative array scanner that supports rapid, sensitive, and accurate imaging of Illumina BeadChips for exceptional genetic analysis results.
Automation options with robot control software for Infinium assays streamline sample preparation workflows and reduce errors.
Fully customizable methylation microarray for large, targeted epigenetic applications.
A fully customizable microarray to interrogate virtually any target across any species to fit your unique study needs.
A comprehensive microarray solution that enables production-scale genotyping of up to 100,000 single- or multi-species custom variants for non-human, and 50,000 custom variants for human.
