The Pillar oncoReveal Lymphoid Panel is a robust NGS assay that interrogates 84 key genes relevant to lymphoid cancers.
Assay time
Hands-on time
Input quantity
The oncoReveal Lymphoid Panel is a robust NGS research assay designed to interrogate 84 genes relevant lymphoid cancers. The panel uses proprietary Stem-Loop Inhibition-Mediated amplification (SLIMamp) technology, a tiled amplicon-based library prep chemistry for efficient single-tube target enrichment.
The panel is designed to detect single nucleotide variants (SNVs), insertion/deletions (indels), and internal tandem duplicates (ITDs) in DNA isolated from whole blood, peripheral blood mononuclear cells (PBMC), white blood cells (WBC), or bone marrow.
The panel uses proprietary Stem-Loop Inhibition-Mediated amplification (SLIMamp) technology, a tiled amplicon-based library prep chemistry for efficient single-tube target enrichment.
Limited hands-on time and optional stopping points allow sample batching efficiencies and operational flexibility. Analysis supported by DRAGEN and Illumina Connected Insights.
| Assay time | < 8 hours |
|---|---|
| Cancer type | Hematologic |
| Content specifications | 84 genes |
| Description | This NGS assay analyzes 84 genes relevant to lymphoid cancers with full coverage of 29 genes and hotspots in an additional 55 genes. |
| Hands-on time | ~3 hr |
| Input quantity | 20–60 ng DNA |
| Instruments | MiSeq System, MiSeqDx in Research Mode, NextSeq 550Dx in Research Mode, MiSeq i100 System, MiSeq i100 Plus System |
| Mechanism of action | Multiplex PCR using tiled amplicon |
| Method | Targeted DNA sequencing, Amplicon sequencing |
| Nucleic acid type | DNA |
| Number of amplicons | 1 pool, 1046 amplicons |
| Number of reactions | 24 reactions per kit |
| On-target reads | 83.2% |
| Specialized sample types | Blood, Low-input samples, Bone marrow |
| Species category | Human |
| Target insert size | 213 bp |
| Technology | Sequencing |
| Uniformity | 85.9% |
| Variant class | Single nucleotide variants (SNVs), Insertions-deletions (indels) |
Pillar oncoReveal Lymphoid Panel also requires the use of a Pillar index kit and sequencing reagents. If secondary analysis and additional insights are desired, DRAGEN Amplicon and Illumina Connected Insights are compatible.
The Pillar oncoReveal Lymphoid Panel analyzes DNA to identify mutations in 84 genes most relevant to lymphoid cancers in under 8 hours of sample processing time.
Pillar oncoReveal Lymphoid Panel
Advancing cancer research through NGS
Our sequencing and microarray technologies support a broad range of cancer genomics research applications, from DNA to RNA analysis, epigenetics, and more.
| Pillar oncoReveal Lymphoid Panel | Pillar oncoReveal Myeloid Panel | ||
|---|---|---|---|
| Assay time | < 8 hours | 48 hr from sample to report | |
| Description | This NGS assay analyzes 84 genes relevant to lymphoid cancers with full coverage of 29 genes and hotspots in an additional 55 genes. | 58-gene amplicon based DNA panel, simple single tube workflow | |
| Hands-on time | ~3 hr | ~3 hr | |
| Input quantity | 20–60 ng DNA | 10–80 ng DNA (20 ng recommended) | |
| Method | Targeted DNA sequencing, Amplicon sequencing | Targeted DNA sequencing, Amplicon sequencing | |
| Nucleic acid type | DNA | DNA | |
| Number of amplicons | 1 pool, 1046 amplicons | 1 pool, 766 amplicons | |
| Number of reactions | 24 reactions per kit | 24 reactions | |
| On-target reads | 83.2% | 99.6% ± 0.2% | |
| Specialized sample types | Blood, Low-input samples, Bone marrow | Blood, Low-input samples | |
| Species category | Human | Human | |
| Target insert size | 213 bp | Average: 215 bp | |
| Technology | Sequencing | Sequencing | |
| Variant class | Single nucleotide variants (SNVs), Insertions-deletions (indels) | Single nucleotide variants (SNVs), Insertions-deletions (indels), Copy number variants (CNVs) |
Library Prep and Array Kit Selector
Find the right sequencing library preparation kit or microarray for your needs. Filter by method, species, and more. Compare, share, and order kits.

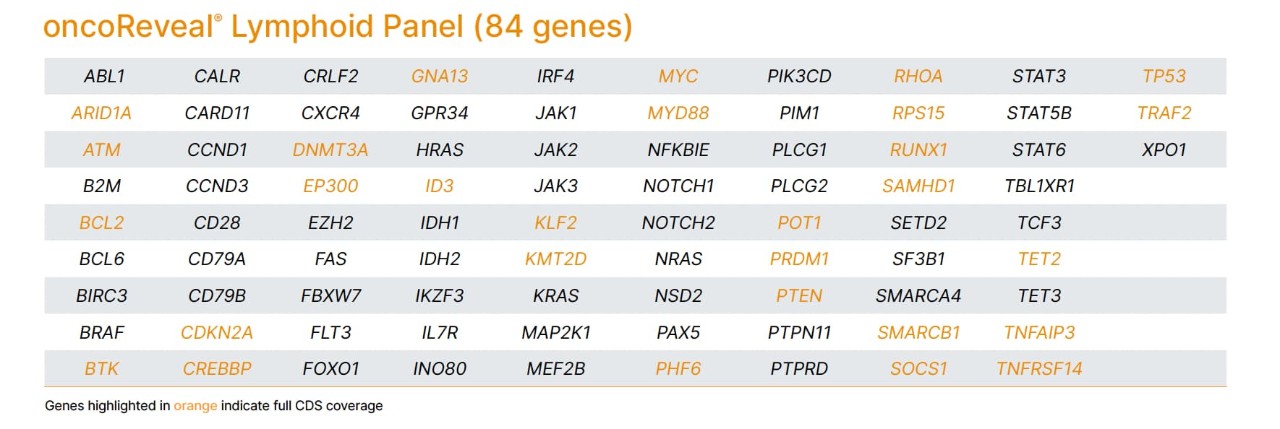

Gene list
Pillar oncoReveal Lymphoid Panel includes 84 genes

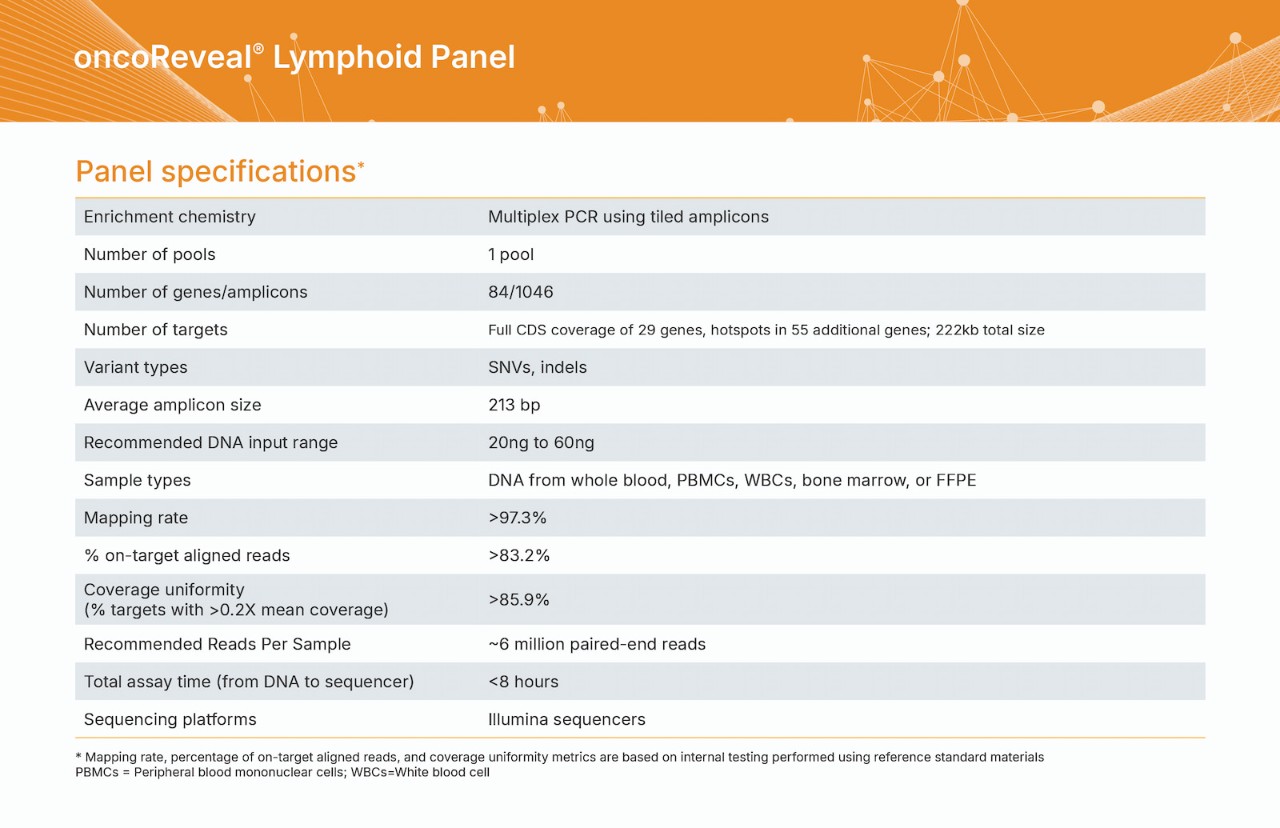

Panel specifications
Pillar oncoReveal Lymphoid Panel specifications
