Robust cfRNA liquid biopsy NGS assay interrogating 83 fusions from plasma across multiple solid tumor types.
Assay time
Hands-on time
Input quantity
The Pillar oncoReveal Fusion LBx Panel is a robust NGS assay designed to interrogate 18 driver genes and over 80 partners relevant across multiple solid tumor types using cell-free RNA (cfRNA) isolated from plasma.
This focused panel can detect gene rearrangements from fusion transcripts (cfRNA) isolated from plasma.
The assay uses proprietary Stem-Loop Inhibition-Mediated amplification (SLIMamp) technology, a tiled amplicon-based library prep chemistry for efficient single-tube target enrichment.
The workflow allows labs to maintain control of samples and results with single-tube, tiled amplification that can be performed in-house by any NGS lab.
| Assay time | 48 hr from sample to report |
|---|---|
| Cancer type | Pan-cancer, Solid tumor |
| Content specifications | 18 driver genes and 83 partners |
| Description | The Pillar oncoReveal Fusion LBx Panel is a robust cfRNA liquid biopsy NGS assay that interrogates fusion transcripts from 18 driver genes with more than 80 partners relevant across multiple solid tumor types. |
| Hands-on time | ~3 hr |
| Input quantity | 10–30 ng cfRNA |
| Instruments | MiSeqDx in Research Mode, NextSeq 550Dx in Research Mode, MiSeq i100 System |
| Mechanism of action | Multiplex PCR using tiled amplicon |
| Method | Amplicon sequencing, Targeted RNA sequencing |
| Nucleic acid type | RNA |
| Number of amplicons | Pool 1: 83 amplicons |
| Number of reactions | 24 reactions per kit |
| Specialized sample types | Cell-free RNA |
| Species category | Human |
| Strand specificity | Non-stranded |
| Target insert size | 80 bp |
| Technology | Sequencing |
| Variant class | Gene fusions |
The Pillar oncoReveal Fusion LBx Panel also requires the use of a Pillar index kit, sequencing reagents, and PiVAT secondary analysis software. If additional variant interpretation is desired, Illumina Connected Insights is recommended.
Pillar oncoReveal Fusion LBx Panel analyzes multiple solid tumor types using cfRNA isolated from plasma in under 10 hours with approximately 3 hours of hands-on time.
Pillar oncoReveal Fusion LBx Panel
Liquid biopsy for cancer biomarker research
Researchers can use liquid biopsy NGS assays to detect and characterize tumor-derived biomarkers present in the blood of individuals with cancer.
Advancing cancer research through NGS
Our sequencing and microarray technologies support a broad range of cancer genomics research applications, from DNA to RNA analysis, epigenetics, and more.
Detecting changes in the cancer transcriptome
Detect cancer gene expression and transcriptome changes and identify novel cancer transcripts with RNA next-generation sequencing (RNA-Seq).
A dedicated support section is not currently available for this product
| Pillar oncoReveal Fusion LBx Panel | TruSight Oncology 500 ctDNA v2 | Pillar oncoReveal Core LBx Panel | Pillar oncoReveal Essential LBx Panel | |
|---|---|---|---|---|
| Assay time | 48 hr from sample to report | 2.5–4 days from purified nucleic acid to variant results | 48 hr from sample to report | 48 hr from sample to report |
| Content specifications | 18 driver genes and 83 partners | Targeted sequencing of DNA for a total of 1.94 Mb panel size: 523 genes for small variants, 59 genes for CNVs, 23 genes for gene rearrangements, bMSI (> 2300 loci), bTMB (1.94 Mb). | 446 amplicons across 104 genes | 200 amplicons across 34 genes |
| Description | The Pillar oncoReveal Fusion LBx Panel is a robust cfRNA liquid biopsy NGS assay that interrogates fusion transcripts from 18 driver genes with more than 80 partners relevant across multiple solid tumor types. | Provides a noninvasive research method for comprehensive genomic profiling of liquid biopsy samples (ctDNA from blood plasma). This liquid biopsy approach provides insights about intra- and inter-tumor heterogeneity using a minimally invasive sample collection approach to complement tissue-based CGP. | The Pillar oncoReveal Core LBx Panel is a robust cfDNA liquid biopsy NGS assay that interrogates 446 targets from 104 genes of interest across multiple solid tumor types. | The Pillar oncoReveal Essential LBx Panel is a robust cfDNA liquid biopsy NGS assay that interrogates 200 targets from 34 genes of interest across multiple solid tumor types. |
| Hands-on time | ~3 hr |
~1.5 hr for automated workflow ~2.5 hr for manual workflow |
~3 hr | ~3 hr |
| Input quantity | 10–30 ng cfRNA | 20 ng cfDNA (4 ml of plasma) | 10–30 ng cfDNA | 10–30 ng cfDNA |
| Method | Amplicon sequencing, Targeted RNA sequencing | Targeted DNA sequencing, Target enrichment | Targeted DNA sequencing, Amplicon sequencing | Targeted DNA sequencing, Amplicon sequencing |
| Nucleic acid type | RNA | DNA | DNA | DNA |
| Number of reactions | 24 reactions per kit | 24 reactions per kit | 24 reactions per kit | |
| Specialized sample types | Cell-free RNA | Circulating tumor DNA, Blood | Cell-free DNA | Cell-free DNA |
| Species category | Human | Human | Human | Human |
| Technology | Sequencing | Sequencing | Sequencing | Sequencing |
Library Prep and Array Kit Selector
Find the right sequencing library preparation kit or microarray for your needs. Filter by method, species, and more. Compare, share, and order kits.
Gene List
Pillar oncoReveal Fusion LBx Panel includes 18 driver genes and 83 partner genes.

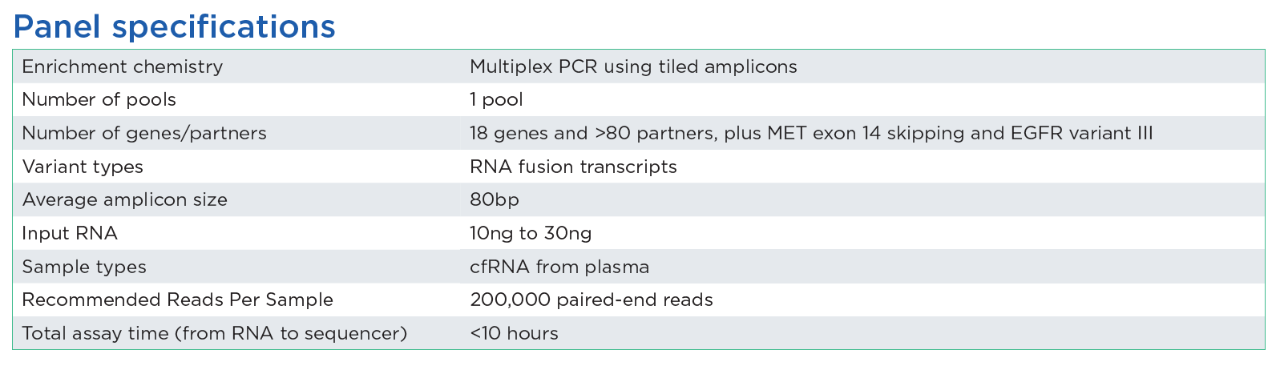

Panel Specifications
Pillar oncoReveal Fusion LBx Panel specifications for cfRNA interrogation from blood plasma.
oncoReveal Fusion LBx 24 Rxn
HLA-HS-1005-24
18 gene (24 sample) liquid biopsy cfRNA panel on SLIMamp™ workflow
List Price:
Discounts:
Pillar Biosciences LBx Indexing Kit A
IDX-PI-1013-96
Index kit for oncoReveal cfDNA/cfRNA panels
List Price:
Discounts:
Pillar Biosciences LBx Indexing Kit B
IDX-PI-1014-96
Index kit for oncoReveal cfDNA/cfRNA panels
List Price:
Discounts:
